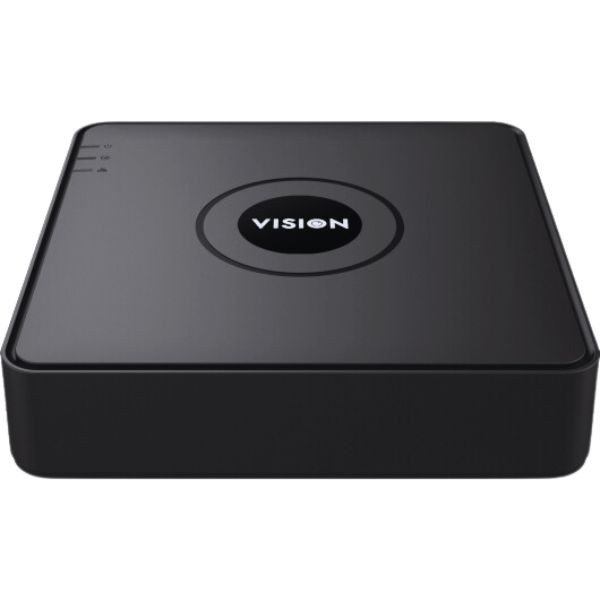

VISION CCTV 4CH DVR -VSN7104HQHI-K1

The VISION CCTV 4CH DVR - VSN7104HQHI-K1 is a versatile digital video recorder designed to support various camera types, including HD-TVI, AHD, CVI, CVBS, and IP cameras. It features efficient H.265 Pro+ compression technology, allowing for enhanced video storage efficiency. The DVR supports up to 4 analog channels via BNC interfaces and can connect up to 6 network cameras in Enhanced IP mode. It offers both HDMI and VGA outputs with a maximum resolution of 1920 × 1080 at 60Hz. For storage, it includes one SATA interface supporting hard drives up to 6TB. The device also provides various recording resolutions and frame rates, with encoding capabilities up to 1080p at 15 fps. Additionally, it supports multiple video and audio compression formats, including H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 for video, and G.711u for audio.
Key Specifications:
    Video and Audio Input:
        4-channel BNC interface supporting HD-TVI, AHD, CVI, and CVBS inputs.
        1-channel RCA audio input; additionally, 4-channel audio input via coaxial cable.
    IP Video Input:
        1-channel (up to 5 channels); in Enhanced IP mode, supports 2 channels (up to 6 channels), each up to 4 Mbps, with up to 6 MP resolution.
    Video Output:
        HDMI and VGA outputs, each supporting resolutions up to 1920 × 1080 at 60Hz.
    Recording:
        Supports various resolutions, including 4 MP lite, 3 MP, 1080p, and 720p.
        Main stream encoding up to 1080p at 15 fps; sub-stream supports WD1/4CIF at 12 fps and CIF at 25 fps (P) / 30 fps (N).
    Compression:
        Video: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264.
        Audio: G.711u.
    Storage:
        1 SATA interface supporting hard drives up to 6TB.
    Network:
        1 RJ45 10M/100M self-adaptive Ethernet interface.
    USB Interface:
        2 × USB 2.0 ports.
    Dimensions:
        200 × 200 × 45 mm.
    Power Supply:
        12 VDC, 1.5 A.
    Chassis:
        Mini 1U chassis.
This DVR is suitable for small to medium-sized surveillance systems, offering flexibility and efficient storage capabilities.
